Pain transmission involves a complex series of interactions. This slide deck offers insight into the neurobiology and aetiology of migraine and discusses pain and nociception, the pathology of migraine and the brain regions involved in migraine.

This slide deck has been developed for Neurotorium in collaboration with Cambridge Medical – A Prime Global agency and Bjarke Ebert H. Lundbeck A/S. Reviewed by Clinical Research Associate Professor Henrik Winther Schytz, Danish Headache Center, Rigshospitalet Glostrup.

Index for
slide deck

Neurobiology and aetiology

Migraine - Neurobiology and aetiology
Migraine - Neurobiology and aetiology
file_download Download slide in HQ

Pain and nociception

Pain and nociception
Pain and nociception
file_download Download slide in HQ

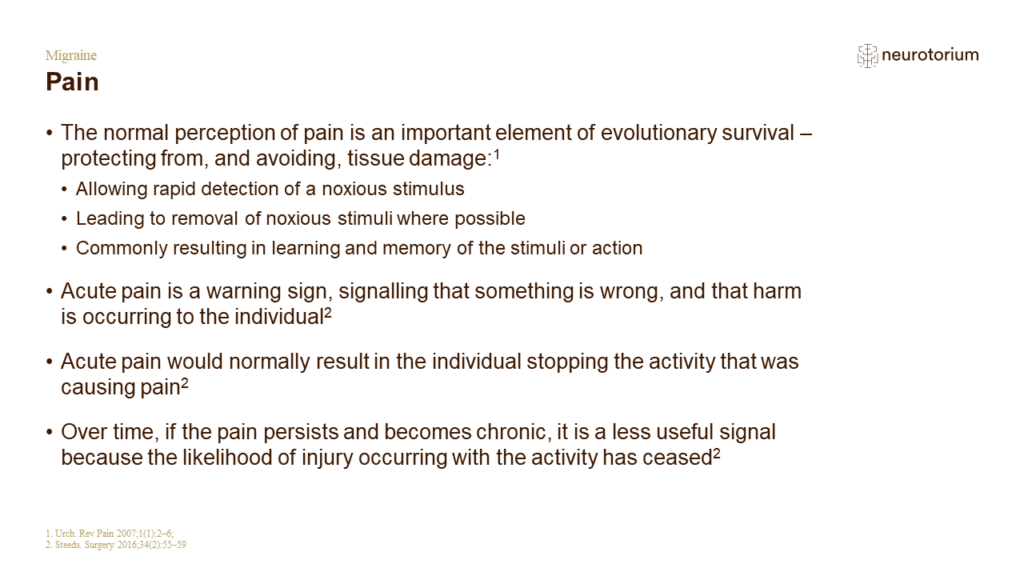

Pain
Pain

There have been many attempts to classify and define pain, and discussions about the nature of pain versus nociception.[Kumar & Elavarasi, 2016; Treede, 2018] In 1979, the International Association for the Study of Pain (IASP) defined pain as “an unpleasant sensory and em…

file_download Download slide in HQ

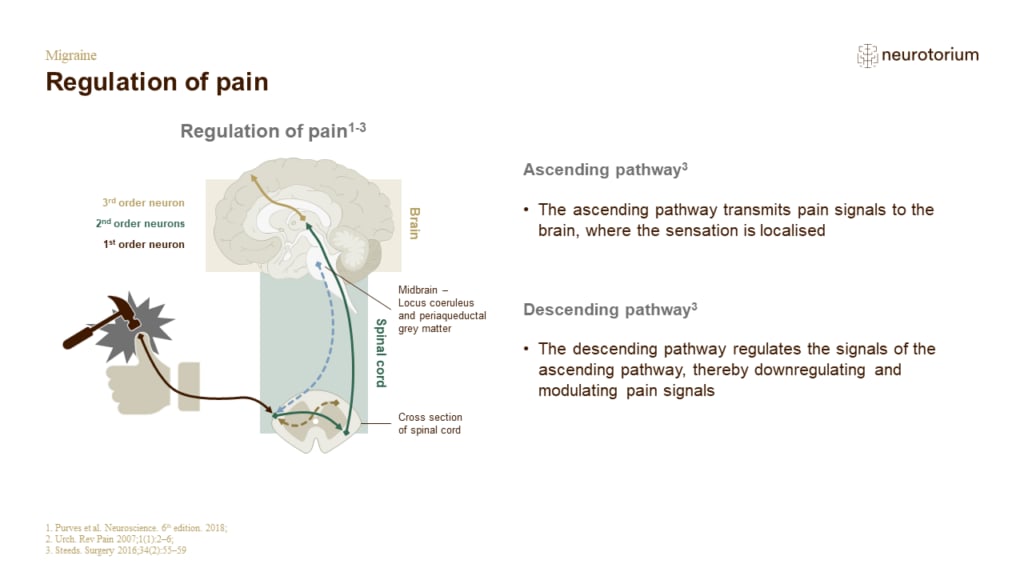

Regulation of pain
Regulation of pain

Transmission of pain involves a complex series of interactions, described on the slide.[Steeds, 2016] First-order, afferent neurons convey the signal from the site of injury, and synapse with second-order neurons in the dorsal horn of the spinal cord.[Steeds, 2016] Tracts…

file_download Download slide in HQ

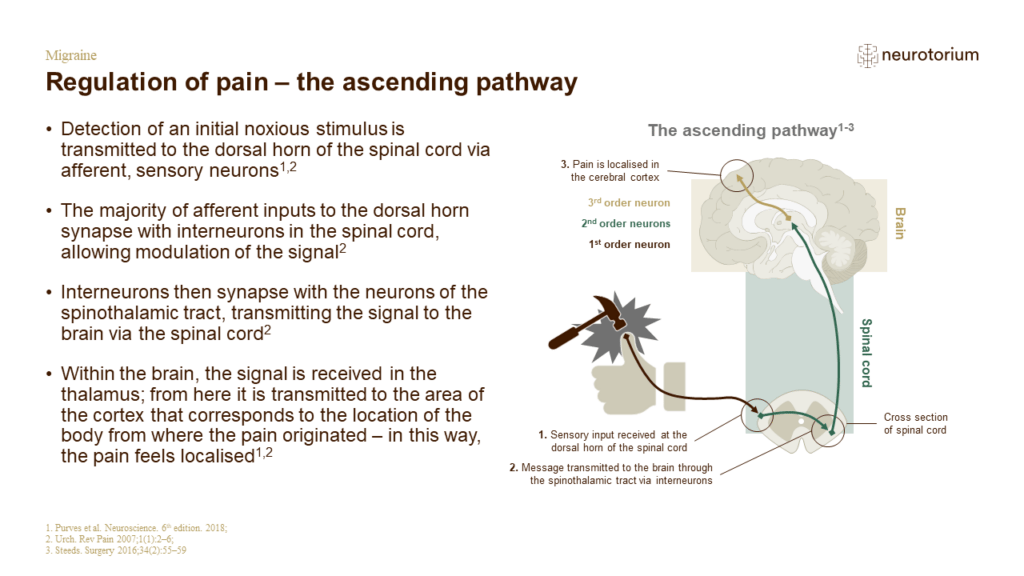

Regulation of pain – the ascending pathway
Regulation of pain – the ascending pathway

Transmission of pain involves a complex series of interactions, described on the slide.[Steeds, 2016] First-order, afferent neurons convey the signal from the site of injury, and synapse with second-order neurons in the dorsal horn of the spinal cord.[Steeds, 2016] Tracts…

file_download Download slide in HQ

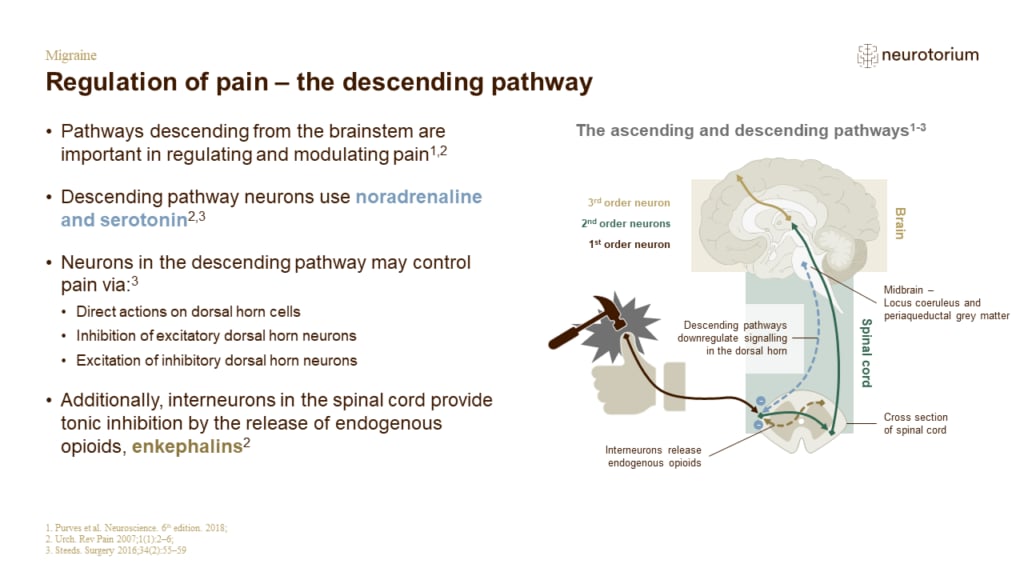

Regulation of pain – the descending pathway
Regulation of pain – the descending pathway

The ascending pathway, which transmits sensations of pain to the brain, is regulated by neurons that descend from the brainstem – the descending pathway.[Steeds, 2016] These noradrenergic and serotonergic neurons downregulate the activity of neurons of the dorsal horn, th…

file_download Download slide in HQ

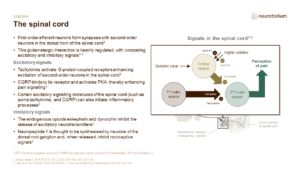

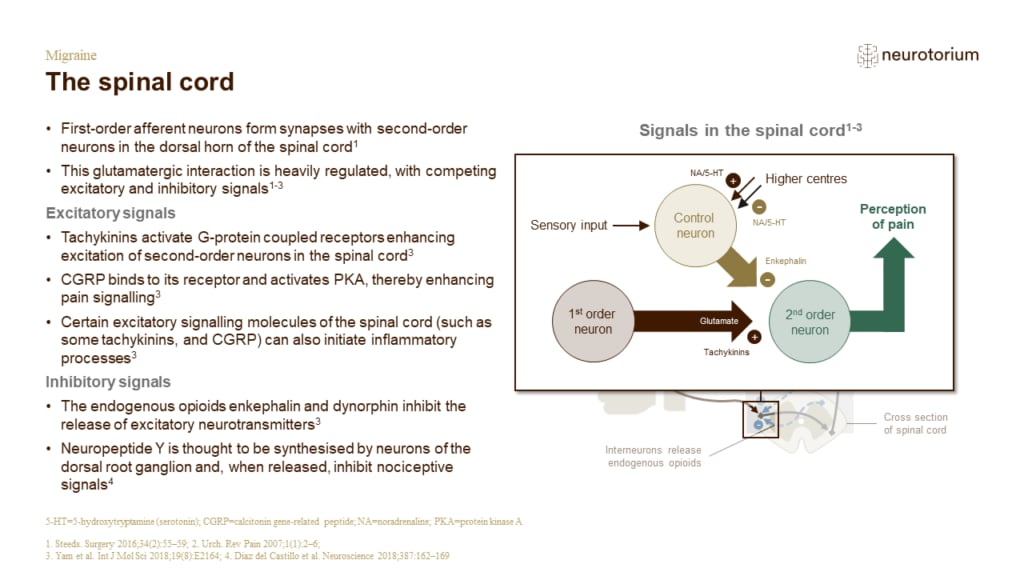

The spinal cord
The spinal cord

Modulation of pain signals in the spinal cord is achieved by fine-tuning the various positive and negative signals that control the interaction of the first-order neuron with the second-order neuron.[Steeds, 2016; Urch, 2007; Purves et al., 2018] Within the dorsal horn of…

file_download Download slide in HQ
Nociception
Nociception

In the last century, neurons have been classified according to conduction velocity, into groups A, B, and C.[Purves et al., 2018] However, as more became known about neurons, different classifications arose within the groups, and entirely different groups arose for classi…

file_download Download slide in HQ

The pathology of migraine

The pathology of migraine
The pathology of migraine
file_download Download slide in HQ

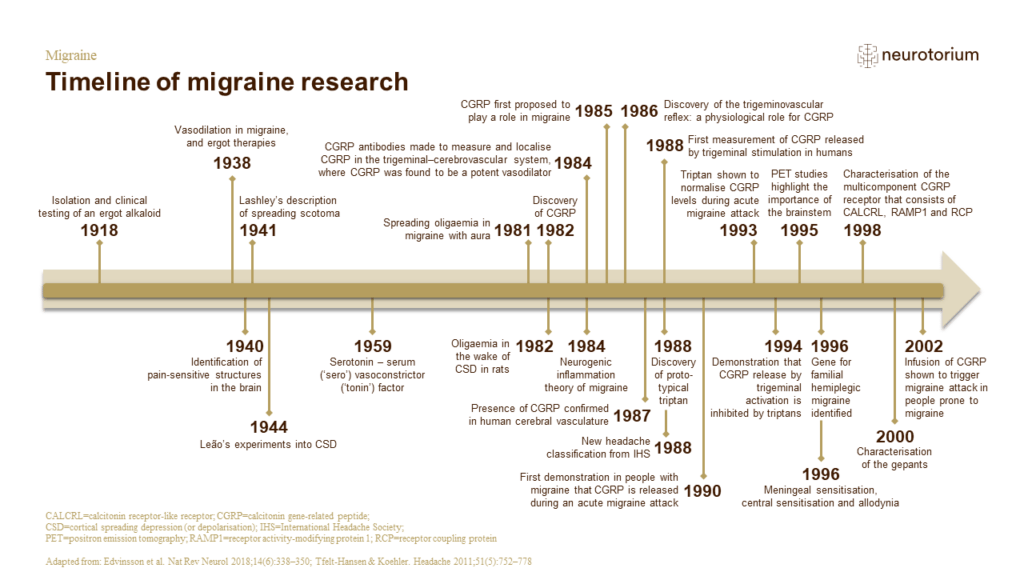

Timeline of migraine research
Timeline of migraine research

Over the last century, there has been much progress in understanding the pathology underlying migraine.[Tfelt-Hansen & Koehler, 2011] Key scientific and clinical milestones are detailed on the slide, including some of the key events in the development of migraine therapie…

file_download Download slide in HQ

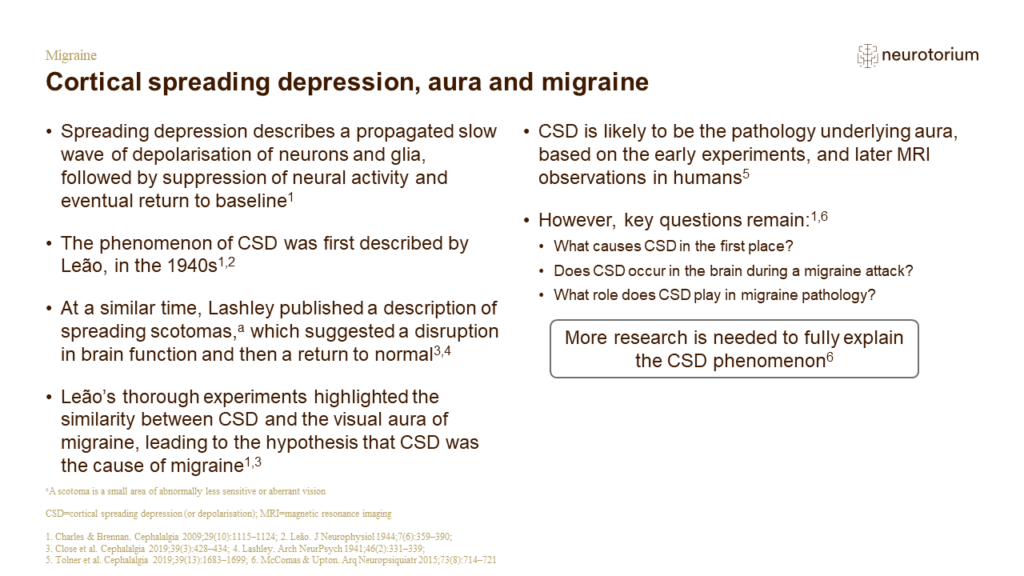

Cortical spreading depression, aura and migraine
Cortical spreading depression, aura and migraine

Critics of CSD have long pointed out that, although observed in animal studies, CSD has not been consistently observed using electroencephalograms (EEG) in humans with migraine.[Charles & Brennan, 2010] Furthermore, CSD would be expected to have quite profound effects on …

file_download Download slide in HQ

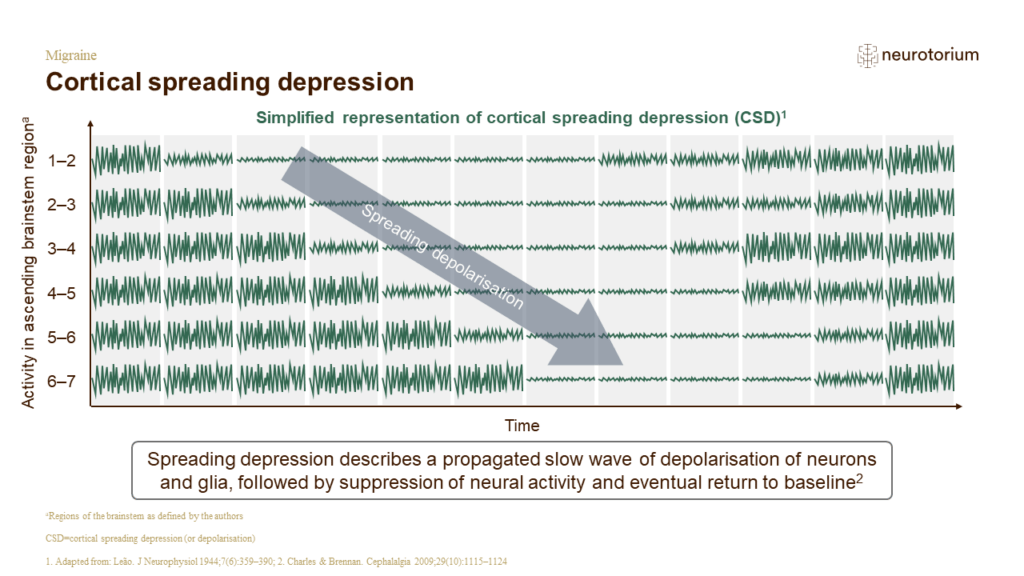

Cortical spreading depression
Cortical spreading depression

The seminal publication of Aristides Leão in 1944 reported the experimental ability to temporarily suppress electrical activity in an area of the brain (specifically, a rabbit brain), and this suppression then slowly spread into neighbouring areas.[Leão, 1944] This spread…

file_download Download slide in HQ

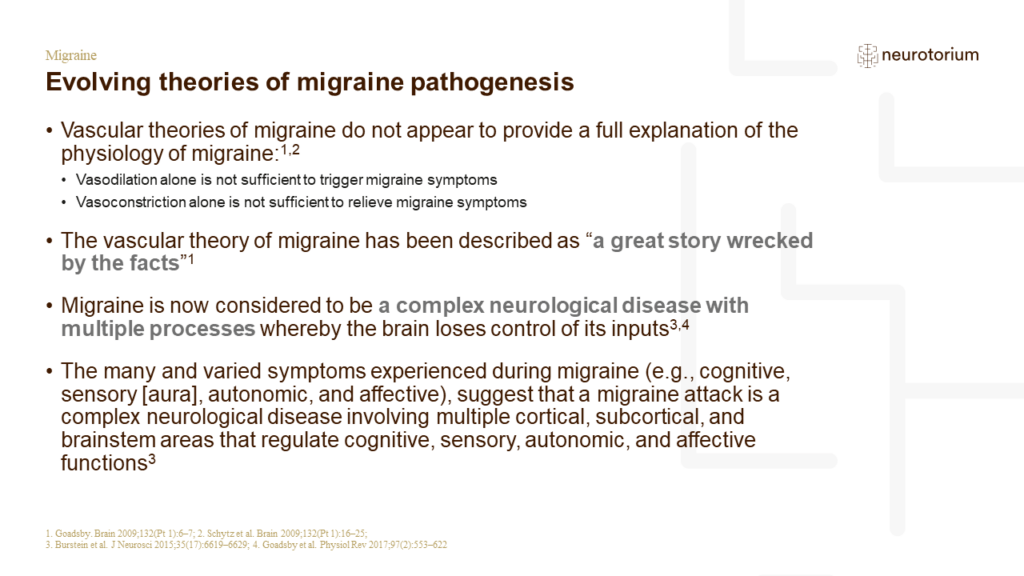

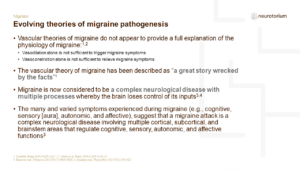

Evolving theories of migraine pathogenesis
Evolving theories of migraine pathogenesis

From the perspective of the patient, viewing migraine as a neural condition is potentially a good thing.[Goadsby, 2009] The generation of vasoactive drugs that have been used in the treatment of migraine have the potential to cause vascular complications.[Goadsby, 2009] T…

file_download Download slide in HQ
The vascular theory of migraine
The vascular theory of migraine

One of the first therapies for migraine – an ergot alkaloid – works by vasoconstriction; this led to attempts to unravel the pathology of migraine by focussing on the vasculature.[Mason & Russo, 2018; Charles & Brennan, 2010] However, although vascular changes do occur du…

file_download Download slide in HQ

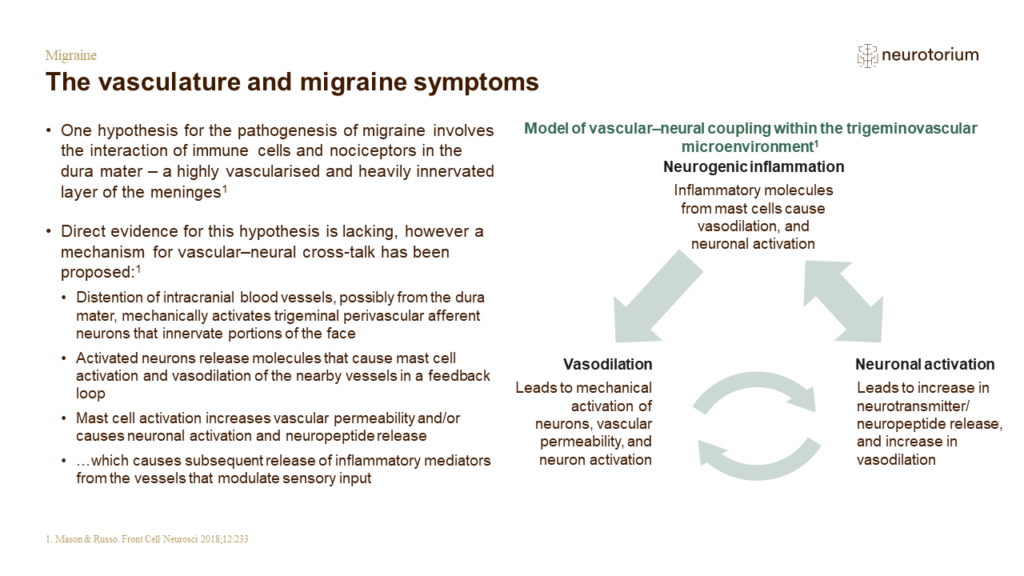

The vasculature and migraine symptoms
The vasculature and migraine symptoms

It has been argued that the therapeutic value of some vasoactive chemicals to treat migraine symptoms, and the fact that other vasoactive chemicals can cause migraine, means that vascular contributions to the pathology of migraine are more than peripheral.[Mason & Russo, …

file_download Download slide in HQ

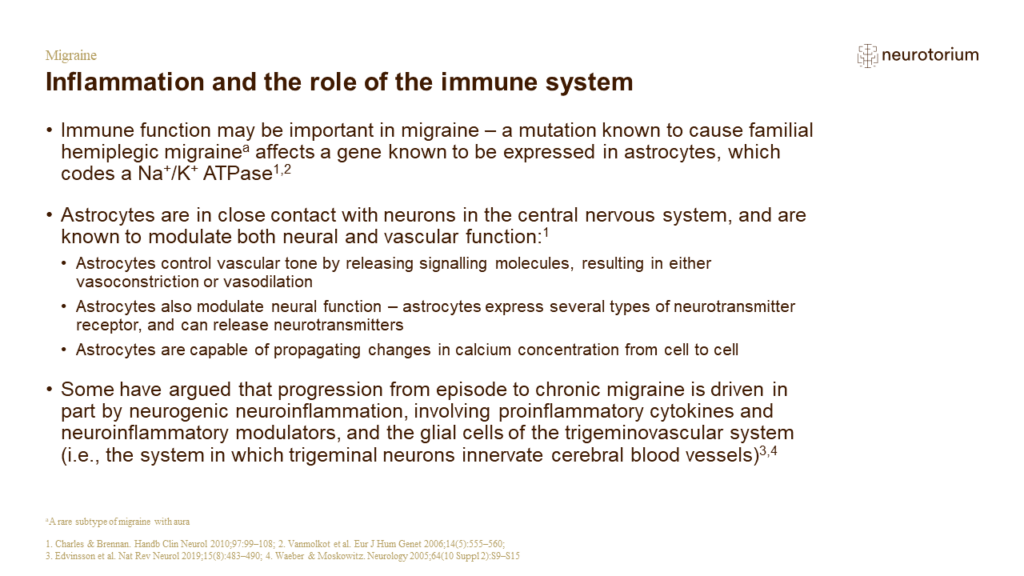

Inflammation and the role of the immune system
Inflammation and the role of the immune system

Migraine has not classically been considered an inflammatory condition, perhaps because, other than pain, migraine is not obviously associated with signs of inflammation (redness, heat, and swelling).[Waeber & Moskowitz, 2005] A question that immediately arises, then, is …

file_download Download slide in HQ

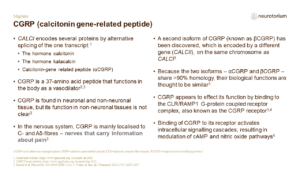

CGRP (calcitonin gene-related peptide)
CGRP (calcitonin gene-related peptide)

The CALCI gene encodes several different proteins.[Russell et al., 2014] This is achieved by alternative splicing, whereby certain portions of the code are removed from the RNA transcript that is used to produce a protein.[Russell et al., 2014] In the case of CALCI, splic…

file_download Download slide in HQ

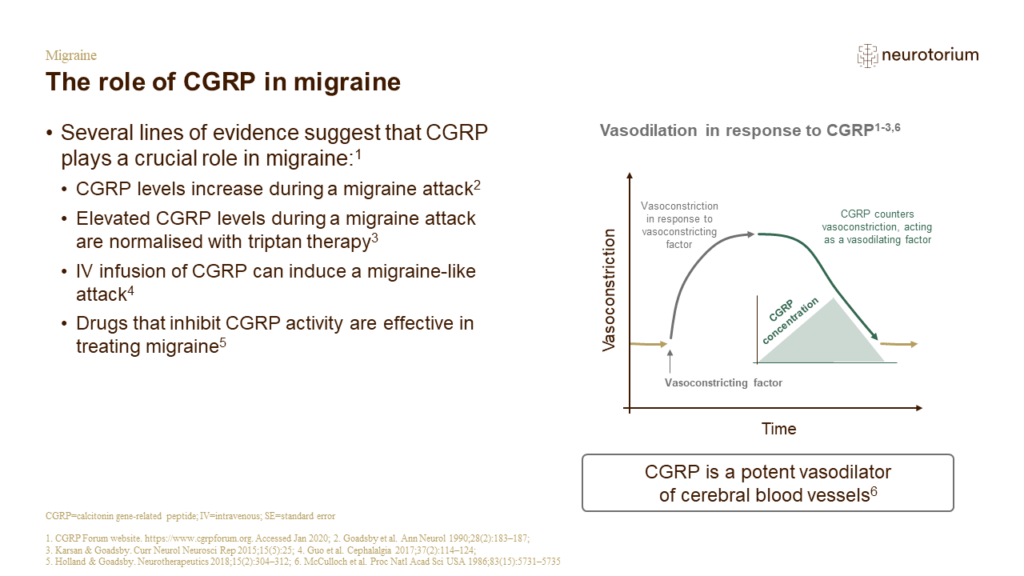

The role of CGRP in migraine
The role of CGRP in migraine

A series of seminal experiments showed that CGRP was released into the blood during the headache phase of a migraine – in people with and without aura.[Goadsby et al., 1988; Goadsby et al., 1990] The levels of other peptides, e.g., substance P or neuropeptide Y, were unal…

file_download Download slide in HQ
Pharmacological targets for CGRP inhibition
Pharmacological targets for CGRP inhibition

The CGRP peptide exerts its influence by binding to a CGRP receptor and activating intracellular signalling pathways, such as the cAMP (cyclic adenosine monophosphate) pathway.[Levin et al., 2018] By interacting with second-order neurons passing on a nociceptive signal, i…

file_download Download slide in HQ

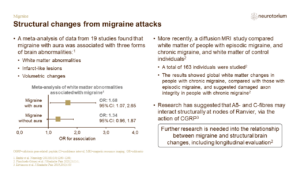

Structural changes from migraine attacks
Structural changes from migraine attacks

It has been much debated over the years whether or not the recurrent attacks that typify chronic migraine result in damage to the brain.[Bashir et al., 2013; Planchuelo-Gómez et al., 2020] However, with mounting evidence that people with migraine are at an increased risk …

file_download Download slide in HQ

Related content

image Image Stroke, migraine, AD and other dementias were among the top ten conditions that accounted for the greatest nervous system DALYs in 2021
Highlights from the Global Burden of Disease 2021 Study

Stroke, migraine, Alzheimer’s Disease and other dementias were among the top ten conditions that accounted for the greatest nervous system DALYs in 2021

25.07.2024 Alzheimer’s Disease
image Image Migraine has a detrimental effect on public health, and is a major contributor to disability throughout the world.
Migraine as a global health crisis

An analysis of the Global Burden of Disease (GBD) study showed that migraine and headache disorders were leading causes of years lived with disability, and that for individuals aged 15–49 years, migraine is the leading cause of disability for women.

30.09.2023 Migraine

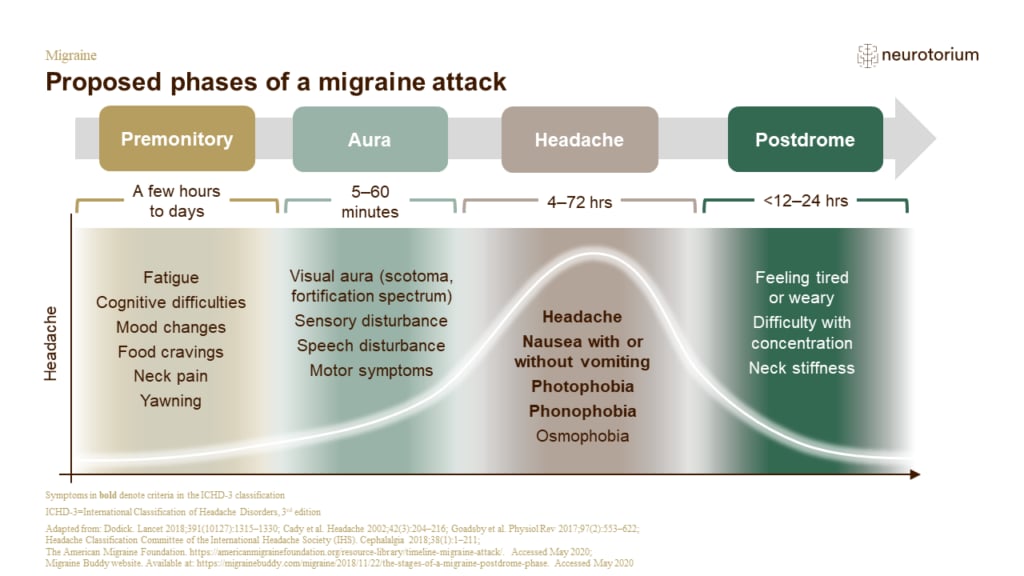

image Image Migraine attacks can be broken down into four phases: prodrome, aura, headache, and postdrome, as shown in the image.
