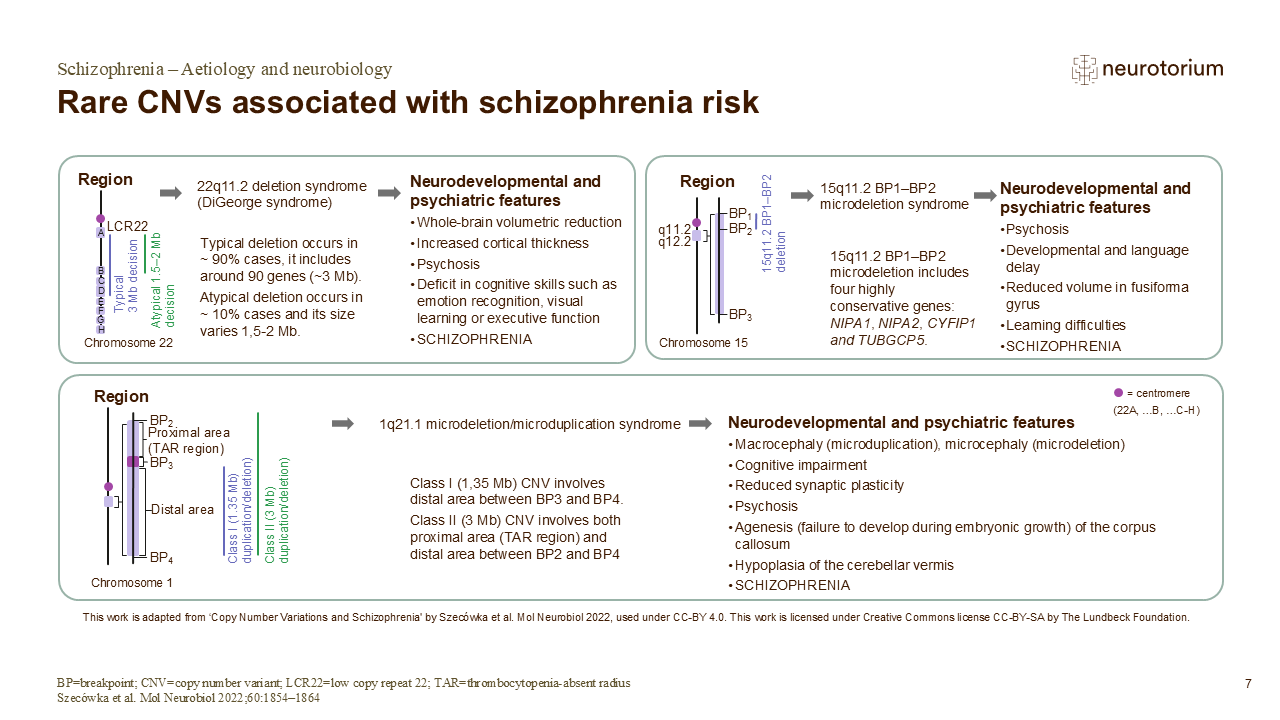

This figure illustrates examples of rare CNVs that are associated with increased risk of schizophrenia. Each panel shows the chromosomal region affected (22q11.2 deletion, 15q11.2 microdeletion, and 1q21.1 microdeletion or microduplication), alongside characteristic neurodevelopmental and psychiatric features observed in carriers.1
Abbreviations: CNV=copy number variant
References:
1. Szecówka K, Misiak B, Łaczmańska I, et al. Copy number variations and schizophrenia. Mol Neurobiol 2022; 60: 1854–1864.
